Winow New Energy Co., Limited offers Printed Circuit Board manufacturing with high quality and affordable price. No matter single board for a prototype or large volume production, Winow technology can meet your requirements of PCB fabrication in a variety of materials and technologies. We focus on multi-layer printed circuit boards, impedance Controlled circuit boards and HDI PCB, Aluminum based PCB, Rigid-Flex PCB in diverse complexities.

Circuit Board Specifications

  • Maximum Panel size: 600×770mm (23.62"×30.31")
  • Maximum Number of Layers: 1-36
  • Copper Thickness: 0.5 oz to 20.0 oz
  • Minimum Line Width: 3 mil
  • Minimum Line spacing: 3 mil
  • Smallest Hole: 0.006"
  • Blind, Buried and plugged Vias
  • Controlled impedance

PCB Fabrication Product Show

Aluminum Base PCB

Technical Parameters

  • Layer count: 1
  • Board thickness: 1.0mm
  • Raw material: Aluminum base+FR4, thermal conductivity 2.0w/mk
  • Copper thickness on the board surface: ≥45um
  • Copper thickness in the hole barrel: 20um
  • Min. line width/space: 0.25mm
  • Minimum hole diameter: 0.3mm
  • Surface finishing: immersion gold ≥1u"
  • Application: illumination
Aluminum PCB Supplier

Flex PCB

Technical Parameters

  • Layer count: 2
  • Board thickness: 0.14mm
  • Dimension: 88×58.68mm
  • Raw material: double sided, RD copper without AD
  • Copper thickness on the board surface: 20um
  • Copper thickness in the hole barrel: 9um
  • Min. line width/space: 0.075mm
  • Minimum hole diameter: 0.2mm
  • Surface finishing: immersion gold ≥1u"
  • Application: GPS
Flex PCB Product

Rigid-Flex PCB

Technical Parameters

  • Layer count: 8
  • Board thickness: 1.5mm
  • Dimension: 98×88.1mm
  • Raw material: FR4+PI+NFPP
  • Copper thickness on the board surface: ≥35um
  • Copper thickness in the hole barrel: 20um
  • Min. line width/space: 0.075mm
  • Minimum hole diameter: 0.2mm
  • Surface finishing: immersion gold ≥2u"
  • Application: high frequency antenna

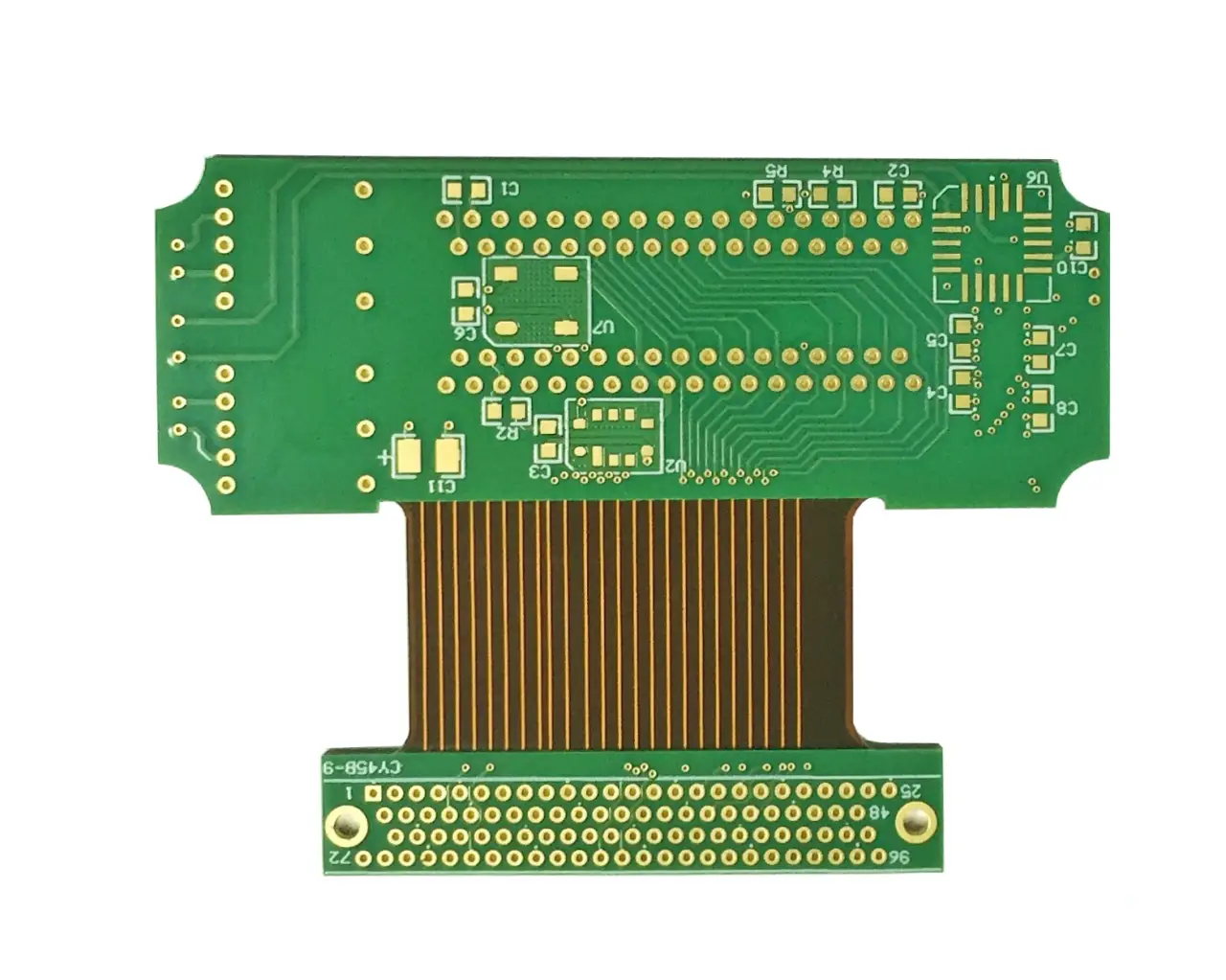

Rigid-Flex PCB Product

HDI PCB

Technical Parameters

  • Layer count: 2 stage 10 layer
  • Board thickness: 1.0mm
  • Dimension: 158×120.89mm
  • Raw material: FR4 EM825
  • Copper thickness on the board surface: ≥35um
  • Copper thickness in the hole barrel: 20um
  • Min. line width/space: 0.075mm
  • Minimum hole diameter: 0.1mm
  • Surface finishing: immersion gold ≥1u"
  • Application: automotive driving recorder

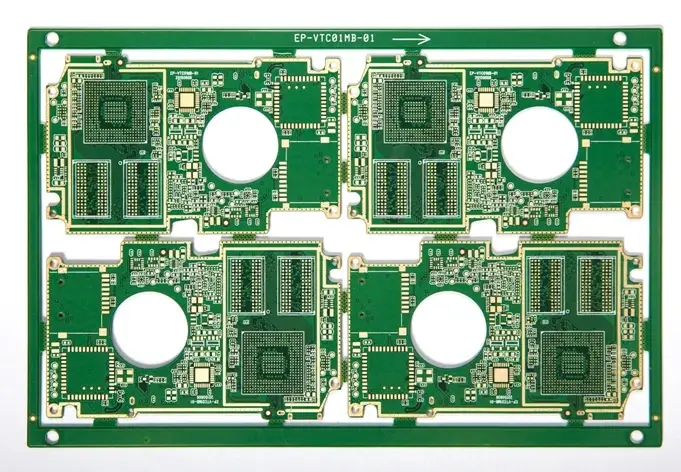

HDI PCB Product
